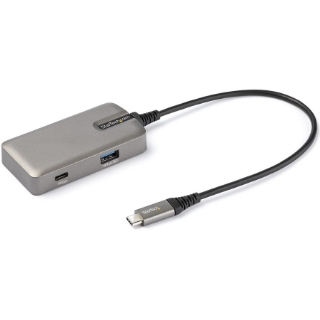

This USB-C multiport adapter with support for 4K 60Hz HDMI® (HDR) turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB 3.1 Gen 2 Type-A (10Gbps) port (supporting BC 1.2/7.5W device charging), a USB 3.1 Gen 2 Type-C (10Gbps) port, and an additional USB 3.1 Gen 2 Type-C port that can also be used as a 100W PD 3.0 pass through port - all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.
USB 3.1 Gen 2 (10Gbps) is also known as USB 3.2 Gen 2x1 (10Gbps).
Enhance Productivity
The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultra-wide monitor with resolutions up to 3440x1440 60Hz.
DP Alt Mode Required Maximum Resolution DP 1.2 Alternate Mode Up to 4K 30Hz DP 1.4 Alternate Mode Up to 4K 60Hz
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you a USB-A (10Gbps) port, and a USB-C (10Gbps) port to connect your USB devices. Plus, when using the multifunction adapter without a power adapter connected, the additional USB-C port, that the power adapter connects to, can be used as a USB-C (10Gbps) peripheral port.
Easy Portability
For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and fits easily into a laptop bag for on-the-go travel use in your office, home office and shared work spaces.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data and video disruption when you switch power sources (USB-C power adapter to bus power).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
More from the Manufacturer
Product Information |
|
Transource eSKU |
1000173140 |
Manufacturer |
STARTECH.COM |
Manufacturer Part Number |
DKT31CHPD3 |
Manufacturer Website Address |
http://www.startech.com |
Brand Name |
StarTech.com |
Product Name |
Docking Station |
Product Type |
Docking Station |
Technical Specifications |
|
Technical Information |
Connectivity Technology |
Wired |
Device Supported |
Notebook/Tablet/Monitor |
Number of Displays Supported |
1 |
Screen Mode Supported |
4K |
Supported Resolutions |
4096 x 2160 |
Supported Resolutions |
3440 x 1440 |
Supported Resolutions |
3840 x 2160 |
Interfaces/Ports |
Host Interface |
USB 3.1 (Gen 1) Type C |
Total Number of USB Ports |
3 |
Number of USB Type-A Ports |
1 |
Number of USB Type-C Ports |
2.0 |
USB Type-A |
Yes |
USB Type-C |
Yes |
USB Type-C Detail |
USB 3.1 Gen 2 USB Type-C (24 pin, 10 Gbps), USB 3.1 Gen 2 USB Type-C (Power Delivery + Data, 24 Pin, 10 Gbps), USB 3.1 Gen 2 USB Type-C (24 pin, 10 Gbps) |
Number of HDMI Ports |
1 |
HDMI |
Yes |
HDMI Version |
2.0b |
Software |
Operating System Supported |
Mac OS X 10.13 High Sierra |
Operating System Supported |
Mac OS X 10.14 Mojave |
Operating System Supported |
Mac OS X 10.15 Catalina |
Operating System Supported |
Mac OS X 11.0 Big Sur |
Operating System Supported |
Mac OS X 12.0 Monterey |
Operating System Supported |
Mac OS X 13.0 Ventura |
Operating System Supported |
Windows 8 |
Operating System Supported |
Windows 10 |
Operating System Supported |
Windows 11 |
Operating System Supported |
ChromeOS |
Operating System Supported |
iPadOS |
Operating System Supported |
Android |
Operating System Supported |
Linux |
Power Description |
Maximum Power Supply Wattage |
100 W |
Physical Characteristics |
Product Color |
Space Gray |
Form Factor |
Portable |
Height |
0.60" |
Width |
3.50" |
Weight (Approximate) |
1.80 oz |
Miscellaneous |
Package Contents |
- Docking Station
- Quick-Start Guide
|
Compatibility |
Mini dock is compatible with USB-C laptops, Ultrabooks & Chromebooks, plus Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel processor and M1 chip), and Surface; works w/ Windows, macOS, iPadOS, Android, Linux & Chrome OS |
Country of Origin |
Taiwan |
Warranty |
Limited Warranty |
3 Year |
